MAGNUM

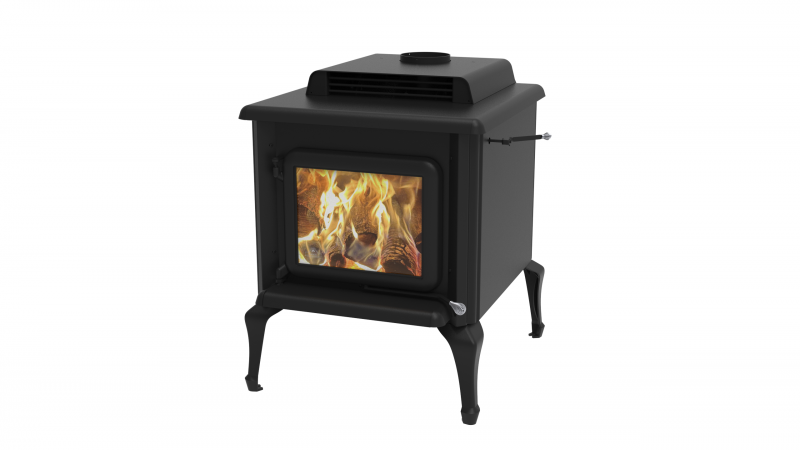

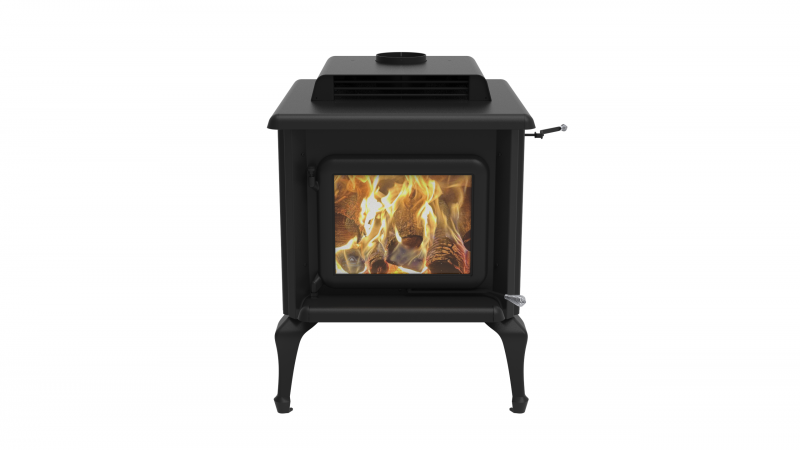

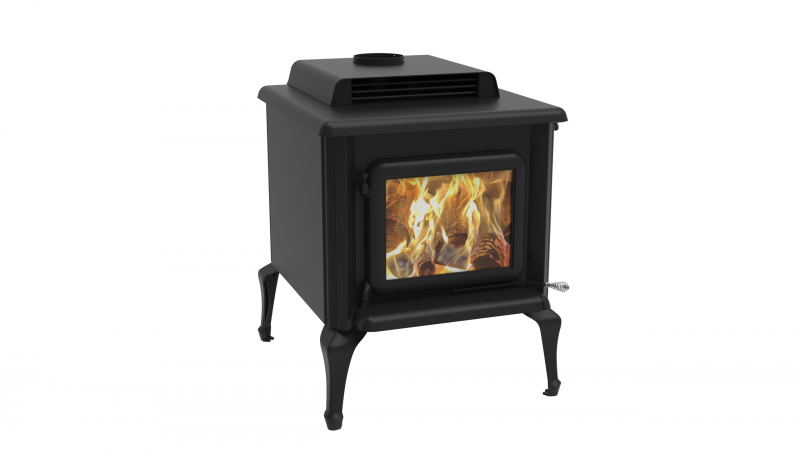

J. A. ROBY | Model #MAGNUMUNMATCHED POWER!
The MAGNUM has a combustion chamber of 4.7 ft³ and its exterior dimension are 37 13/16” high by 29” wide by 37 7/16” depth and it easily accepts wood logs of 25”. Like the ULTIMATE 2015, the MAGNUM has an unmatched power and can easily warm up a house with a dimension up to 3 800 ft². Fan kit is also available as an option.
Features
- One cast iron door model
- High efficiency CSA B415.1-10 certified appliance
- MONTREAL ISLAND APPROVED
- Recommended Heating Area (sq.ft) : 1200 – 3800
- 120,000 BTU (Dry cordwood)
- Color : Metallic black
- Model : Legs
- Heating by convection and radiation
- Glass air-wash system
- Baffle : Fibre ceramic
- Firebox lined with refractory bricks for better heat distribution
- Stainless steel secondary air system improving gas combustion
- Recommended chimney : 6’’
- Optimum efficiency 78%
- Low emissions 2,4 g/h
- Log lenght 25’’
- Tested as per applicable standards by Intertek
Options
- Adapter of two 6" ducts, 460 CFM blower and thermodisc kit (VENTULT)
- Two fans (150CFM together) and 1 thermodisc kit (VENT)
- Chrome trim door (B-MPCH)
- Chrome cast iron legs
MSRP : Details in store
Certifications
- Type of fuel : Wood
- Recommended heating area : 1200 to 3800 ft²
- Combustion length : 4 to 18 hours
- Maximum output : 120,000 BTU
Dry cordwood - Firebox dimensions : Width 20 ½"
Height 15 ½"
Depth 25 ¼"
4.47 ft³ - Maximum log length : 25"
- Exteriors dimensions : Width 29"
Height 37 13/16"
Depth 37 7/16" - Exaust pipe diameter : 6"
- Recommended chimney diameter : 6"
- Minimum chimney height : 12'
- Minimum clearances to combustibles : Back 10"
Lateral & corners 20"
Ceiling (measured from floor) 84" - Weight : 500 lbs
- Standard test - Canada emissions : CSA B415.1-10
- Standard test - safety : ULC S627 / UL 1482
- Warranty : Limited lifetime
