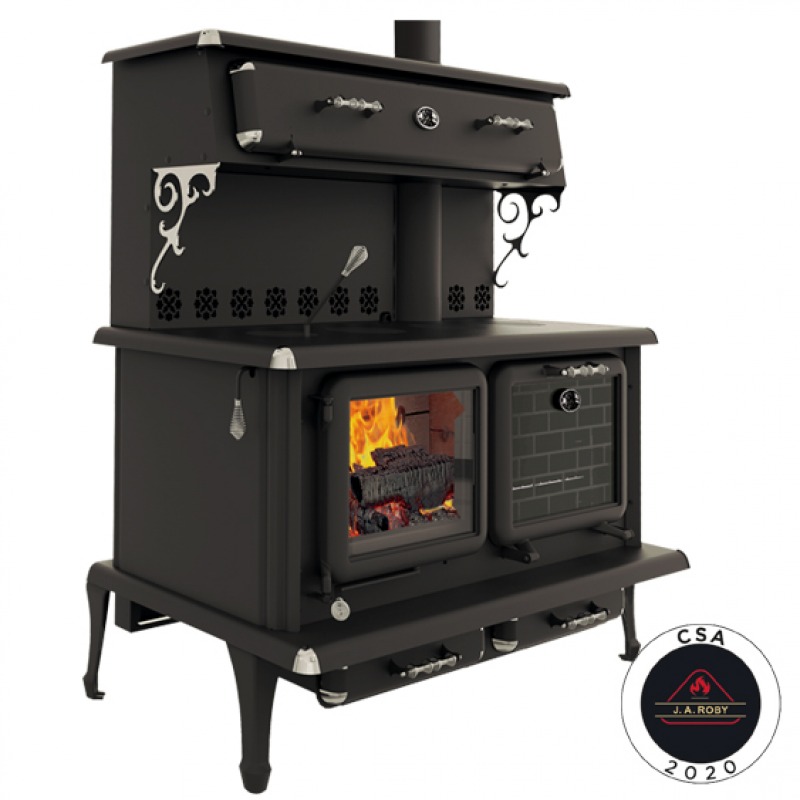

CUISINIERE SE

J. A. ROBY | Model #CUISEN

The great cookstoves of the past were recreated with this new contemporary design. Like our ancestor, warm up your home and enjoy one of your favorites foods cooked directly in the oven or keep your meal warm in the upper food warmer while sipping your cocktail. The CUISINIERE SE represent an essential ally for your house as well as your cottage

Features

  • Model with two cast iron doors (chrome available as an option)
  • High efficiency CSA B415.1-10 certified appliance
  • Recommended Heating Area (sq.ft.): 1500 – 2300
  • Color: Metallic black
  • Model: Legs
  • Convection and radiation heating system
  • Air-wash system on firebox side
  • Glass air-wash system
  • Easy to access ash drawer
  • Cooking area 16" X 47"
  • Glass oven door
  • Food warmer
  • Thermometers on oven and foor warmer
  • Handles, corners and chrome ornaments
  • Low clearance to combustible material
  • Baffle: Fibre ceramic
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6’’
  • Optimum efficiency 88%
  • Low emissions 1.3 g/h
  • LHV 78,6%
  • Log lenght 19"
  • Tested as per applicable standards by Intertek


Options

  • Decorative black top and mirror (TDDNM)
  • Decorative chrome top and mirror (TDDCM)
  • Chrome trim door (B-MPCH)
  • Chrome cast iron legs
  • Black enameled cast iron cooking plate, right (PLAQUECUID)
  • Black enameled cast iron cooking plate, left (PLAQUECUIG)

MSRP : 4 700 $ « options not included »


  • Type of fuel : Wood
  • Recommended heating area : 1500 to 2300 pi²
  • Combustion length : 3 to 5 hours
  • Maximum output : 95,000 BTU
    Dry cordwood
  • Firebox dimensions : Width 18-5/8"
    Height 10-7/8"
    Depth 20"
    2.87 ft³
  • Door opening dimensions : 15-¾" x 10-¼"
  • Maximum log length : 19"
  • Exteriors dimensions : Width 50-¼"
    Height 54-1/8"
    Depth 28-½"
  • Exaust pipe diameter : 6"
  • Recommended chimney diameter : 6"
  • Minimum chimney height : 12'
  • Minimum clearances to combustibles : Back 12"
    Lateral and corners 18"
    Ceiling (measured from floor) 84"
  • Weight : 580 lbs
  • Interior food warmer dimension : Width 46-1/8"
    Height 10-1/8"
    Depth 13-¾"
  • Interior oven dimension : Width 17 1/8"
    Height 14"
    Depth 19 1/8"
    Volume 2,66 cu.ft.
  • Standard test - safety : ULC S627-00 / UL 1482-7
  • Standard test - emissions : CSA B415.1-10
  • Warranty : Limited lifetime
