MAGELLAN LX

MAGELLAN LX

Wood stoves

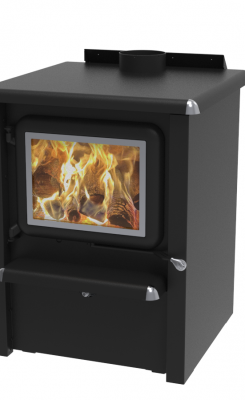

MAGELLAN LX high efficiency wood stove

FEATURES

  • One cast iron square door model
  • High efficiency US EPA NSPS 2020 certified appliance
  • Recommended heating Area (sq.st.) 1,000 - 3,000
  • Color: metallic black
  • Model: Freestanding
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustibles materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6"
  • Low emissions 1.56 gr/h
  • LHV 77,75%
  • Maximum Log lenght 22"
  • Mobile home certified
  • Tested as per applicable standards by Intertek




Options

Two fans (150CFM together) and 1 thermodisc kit (VENT) -- Outdoor air intake package kit (ECPAE) -- 460 CFM blower with thermodisc (VENT460TH) --

Specifications
Type of fuel : Wood
Recommended heating area : 1000 - 3000 pi²
Maximum output : 55 107 BTU/h
Firebox dimensions : Width 18"
Height 15 1/8"
Depth 22 ½"
Door opening dimensions : 15 1/8" x 9 1/4"
Maximum log length : 22"
Exteriors dimensions : Width 28 1/8"
Height 36 5/8"
Depth 34 1/4"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 3/4"
Side 16"
Corner 8"
Top 84" (measured from floor)
Weight : 370 lbs
US EPA 2020 Method 28R : US EPA 2020 Method 28R
WELL MADE HERE : Well made here
Standard test - US emissions : US EPA Method 28R
Warranty : Limited lifetime
